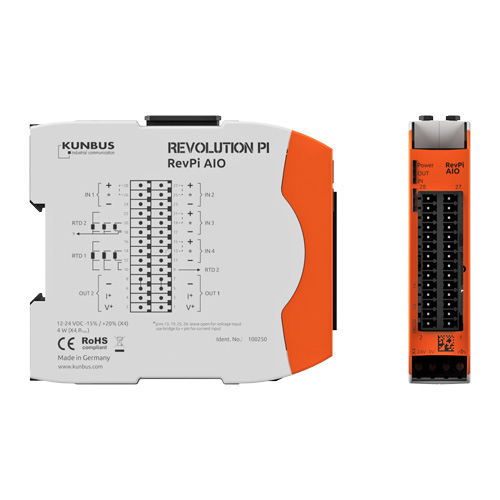

RevPi AIO

$572.97 ex. GST

SKU: PR100250 Category:

Description

Compliance EN61131-2
Housing dimensions (H x W x D) 96 x 22.5 x 110.5 mm
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 115 g
IP Code IP20
Power supply 12 – 24 V (-15%/+20%)
Current consumption max. 200 mA at 24V (full load) max. 400 mA at 12V (full load) max. 500 mA during start up
Operating temperature -30…+55 °C
Storage temperature -40…+85 °C
Humidity (at 40 °C) 93 % (non-condensing)
Voltage measuring range ±10 V | ±5 V | 0…10 V | 0…5 V
Current measuring range 0…20 mA | 0…24 mA | 4…20 mA | ±25 mA
Temperature measuring range -200…+850 °C
Voltage output range ±10 V | ±11 V | ±5 V | ±5.5 V | 0…10 V | 0…11 V |0…5 V | 0…5.5 V
Current output range 0…20 mA | 0…24 mA | 4…20 mA
Number of input channels

for voltage
for curren
for RTD (Pt100/Pt1000)

6

max. 4
max. 4
2

Number of output channels

for voltage
for current

2

max. 2
max. 2

Galvanic isolation

Input to Input
Input to Output
Output to Output
System bus to inputs/outputs



No
Yes
No
Yes

Input type

Voltage/current
RTD



differential
2-, 3-, 4-wire

Output type single ended, common ground, short-circuit proof
ADC type 24 bit ΔΣ
DAC type 16 bit
Input resolution in process image

Voltage
Current
Temperature



1 mV (16 bit)
1 µA (16 bit)
0.1 K (16 bit)

Output resolution in process image

Voltage
Current



1 mV (16 bit)
1 µA (16 bit)

Max. overall input error (at 25 °C ambient temperature)

Voltage (for all ranges)
Current (for all ranges)
Temperature (for complete range)

±10 mV (±5 mV @ 0…5 V range)
±20 µA  (±24 µA @ 0…24 µA range)
±0.5 K
Max. overall input error (for -30…+55 °C ambient temperature)

Voltage (for all ranges)
Current (for all ranges)
Temperature (for complete range)





±10 mV
±72 µA
±1.5 K

Max. overall output error (at 25 °C ambient temperature)

Voltage (for all ranges)
Current (for all ranges)



±15 mV
±20 µA

Max. overall output error (for -30…+55 °C ambient temperature)

Voltage (for all ranges)
Current (for all ranges)



±15 mV
±72 µA

Input conversion time  (data rate in process image) 8…1000 ms (adjustable)
Output data rate 1 PiBridge cycle
Output slew rate

Adjustable digital slew rate control



1 LSB@3.3 kHz up to 128 LSB@258 kHz

Input impedance

Voltage
Current



>900 kΩ
<250 Ω

Output impedance

Voltage
Max. capacitive load



<16 Ω
5 nF @ 1 kΩ

Max. load resistance for current output 600 Ω
Min. load resistance for voltage output 1 kΩ
Further features All inputs and outputs are linear scalable
Overtemperature monitoring
Overcurrent monitoring
Range monitoring
Optical indicator 3 status LEDs (bi-color)
