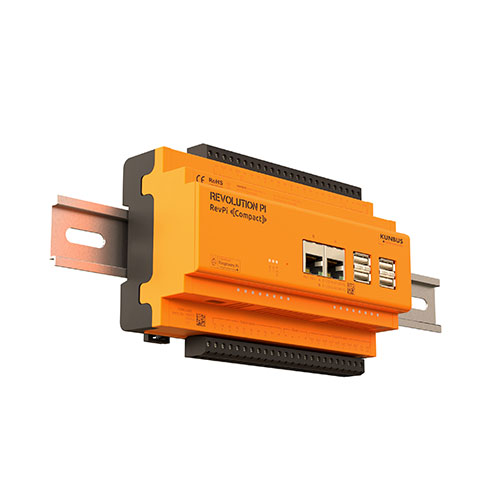

RevPi Compact

$1,102.79 ex. GST

SKU: PR100272 Category:

Description

Dimensions (H x W x D) 90 x 160.6 x 58 mm (w/o plugs
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 290 g
Protection class IP20
Processor Broadcom BCM2837B0 with quad-core ARM Cortex A53
Clock rate 1.2 GHz
Processor cooling Passive with heat sink
RAM 1 GB
Flash memory 8 GB
Power supply 12 – 24 VDC (-10 % / +20 %, reverse polarity protected)
Max. power consumption 20 W (incl. 2 A total USB output current)
Operating temperature -20 °C…+55 °C
Storage temperature -40 °C…+85 °C
Humidity 93 % (non-condensing)
ESD protection 4 kV/8 kV (according to EN 61131-2 and IEC 61000-6-2)
EMI tests Passed (according to EN 61131-2 and IEC 61000-6-2)
Surge/Burst tests Passed (according to EN 61131-2 and IEC 61000-6-2)
RTC Buffer time 24 h
Optical indicator 3 status LEDs (bi-color), two of them freely programmable
Conformity RoHS
Certificataion CE
Item number 100272
