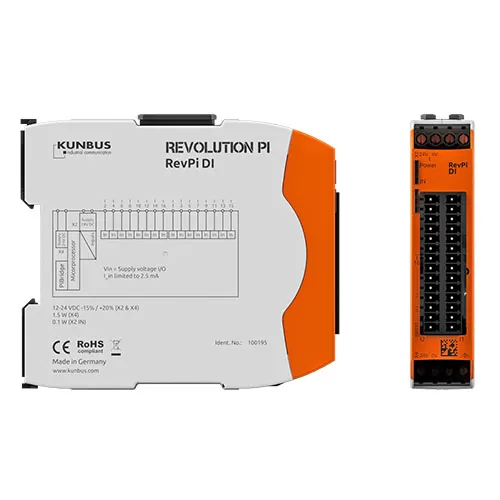

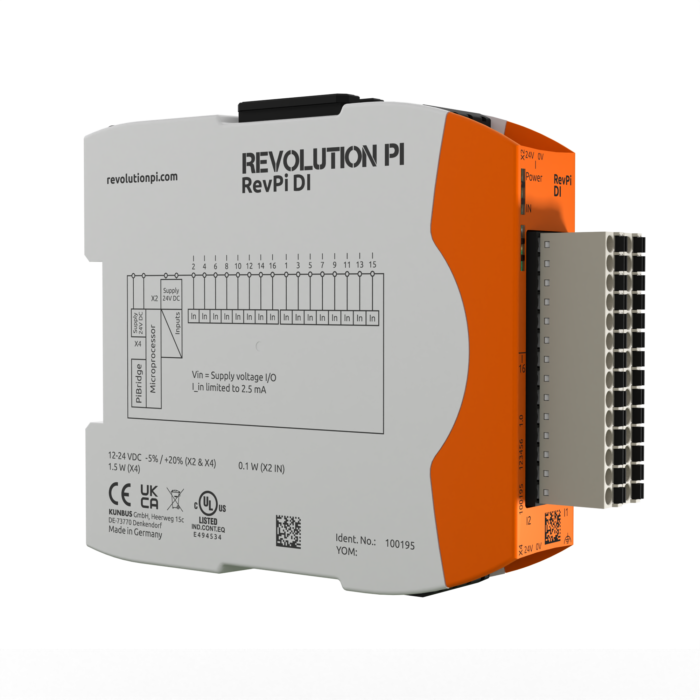

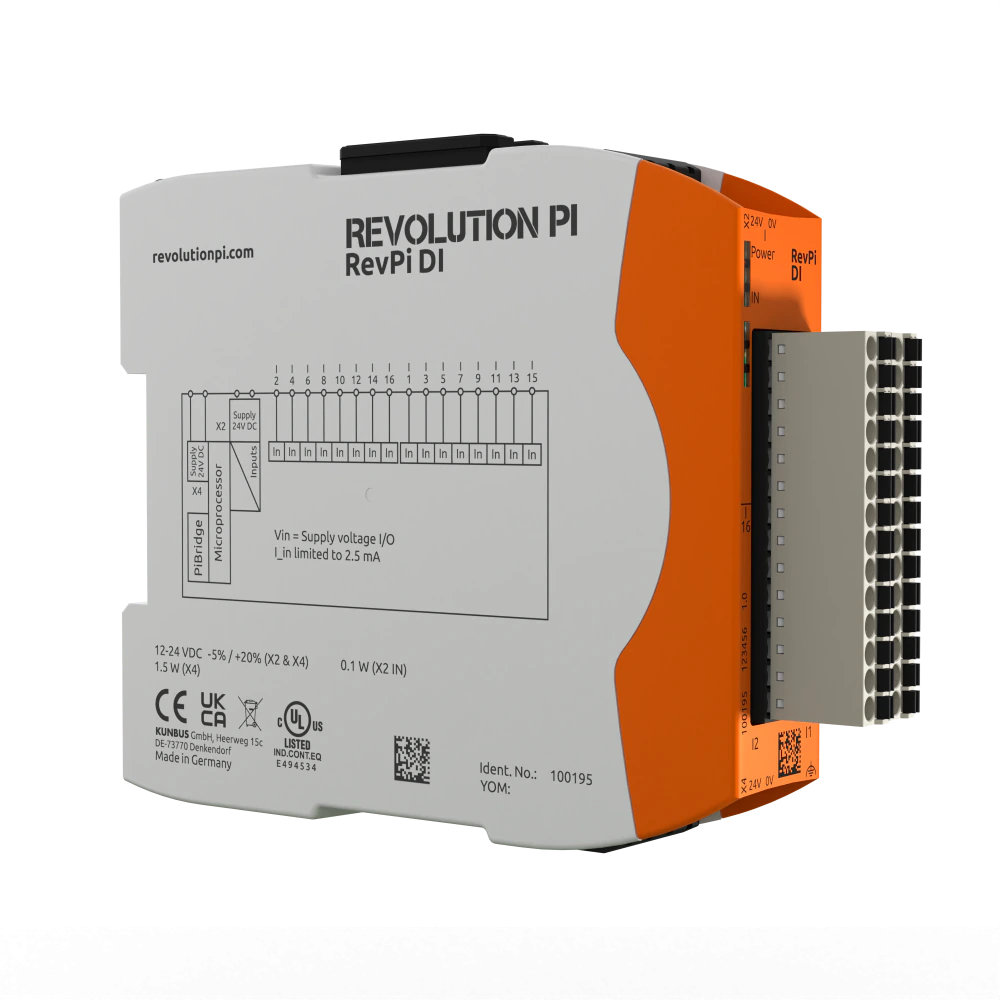

RevPi DI

$313.04 ex. GST

SKU: PR100195 Category:


Housing dimensions (H x W x D) 96 x 22.5 x 110.5 mm
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 100 g / 130 g (incl. connectors)
IP Code IP20
Power supply 12-24 V DC -15% / +20% (X2 and X4) 1
Max. power consumption 1.5 Watt (X4/power supply)
Operating temperature -40 °C….+55 °C
Storage temperature -40 °C….+85 °C
Humidity (at 40°C) 93% (non-condensing)
Connectors 2 x 4-pole screw-type terminal for power supply

2 x 14-pin socket connectors with spring clamp contacts (0.2 – 1.5 mm²) for IOs, pitch 3.5 mm (Wieland Item No. 27.630.4453.0)

Optical indicator 3 status LEDs (bi-color)
Number of digital input channels 16
Input type Galvanically isolated from the system bus, individually configurable as direct digital input, counter rising edge, counter falling edge or together with neighboured input as encoder 2
Input current limitation 2.4 mA (at 24 V power supply)
Input thresholds At 24 V compatible according to EN61131-2 to Type I and III sensors
Digital debounce circuit Collectively adjustable for all inputs: off, 25 µs, 750 µs or 3 ms
Maximum frequency resolution of the counter inputs 2 kHz (corresponding to 500 Hz encoder sequence)
Alarm For auxiliary voltages below 19 V and below 9 V, overtemperature
Input protection According to EN 61131-2 (IEC 61000-4-4, -5, -6, and -2) against overvoltage, negative voltages, burst, surge, ESD, RFI

KUNBUS overview RevPi S and SE series 1

Kunbus Overview Revpi S And Se Series 1

KUNBUS overview RevPi S and SE series 2

Kunbus Overview Revpi S And Se Series 2

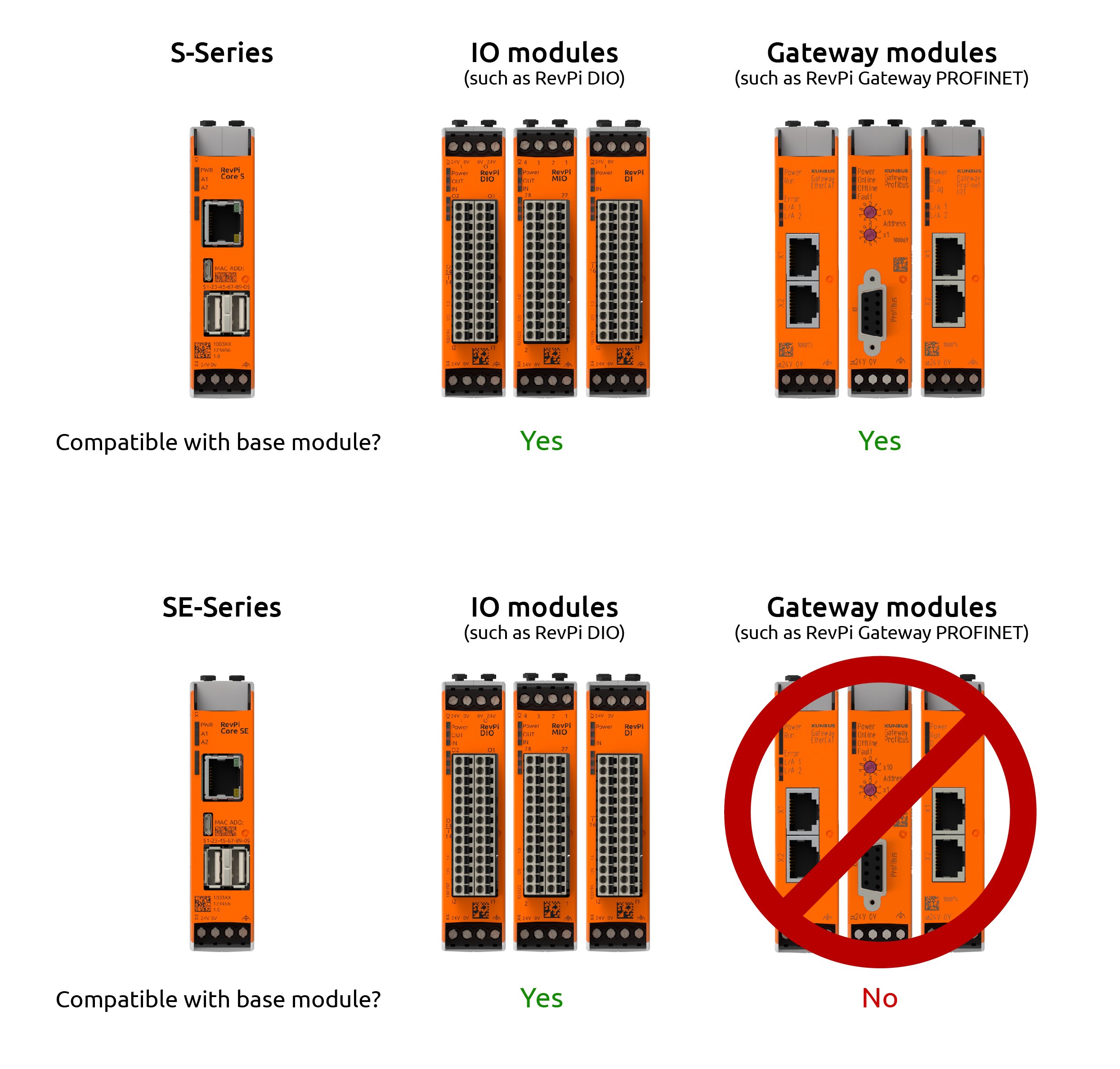

KUNBUS difference S series to SE series RevPi Core S SE
