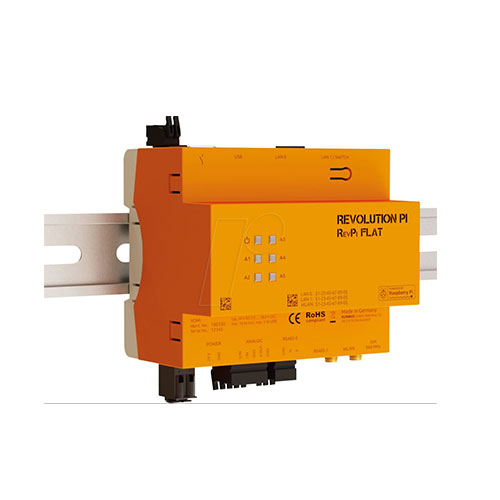

RevPi Flat

$849.07 ex. GST

SKU: PR100330 Category:


Housing dimensions (H x W x D) 90 x 106 x 70 mm
Housing type DIN rail housing (for DIN rail version EN 50022
Housing material Polycarbonate
Weight approx. 248 g
IP Code IP20
Power supply typ. 24 V DC (12.0 … 28.8 V DC), reverse polarity protected
Max. power consumption 16 W (incl. max. 5 W USB)
Operating temperature -20 °C …. +55 °C
Storage temperature -40 °C …. +85 °C
Humidity (at 40 °C) 93 % (non-condensing)
Interfaces 4 x RJ45 10/100 Ethernet, two separate MAC addresses for LAN0 & LAN1 LAN0: 1 x Ethernet LAN1: 3 x Ethernet switched 2 x USB A (total current draw from all sockets max. 1 A) , 2 x RS485 max. 500 kbps, galvanically isolated, termination switchable by software 1 x RP-SMA jack WLAN 1 x SMA jack ISM 868 MHz
Connectors 2-, 3- and 5-pole screw/spring-loaded terminal
Processor Broadcom BCM2837B0 quad-core ARM Cortex A53
Clock rate 1.2 GHz
Processor cooling Passive with heat sink
Flash memory 8 GB
Number of digital output channels 1
Digital output type potential-free relay contact
Maximum current output channel 2 A @ 30 V DC
Number of analog input channels 1
Analog input type 0-10 V DC or 0-20 mA, single ended, 16-bit at piControl, 21-bit raw value
Number of analog output channels 1
Analog output type 0-10 V DC, short-circuit proof, protection against backfeeding, 12-bit resolution, 1% accuracy
Maximum current load of the analog output 10 mA (10 V DC @ 1 k)
Software interface of inputs and outputs Via GPIOs and process image
EMC interference emission according to EN 61000-6-4
EMC immunity according to EN 61000-6-2
Buffer time RTC min. 24 h
Optical indicator 6 status LEDs (bi-color), five of them freely programmable
RoHS conformity Yes
CE conformity Yes
