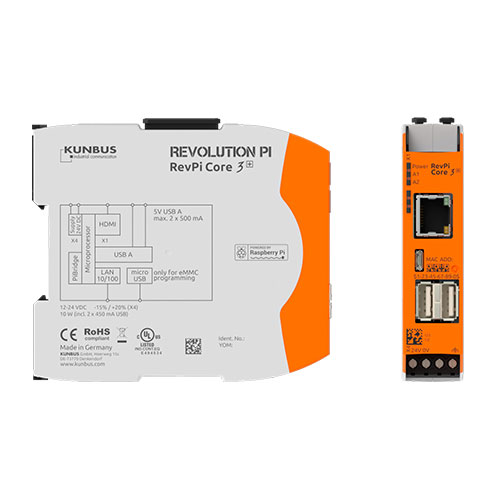

RevPi Core + 32GB

$645.38 ex. GST

SKU: PR100301 Category:

Description

Housing dimensions (HxWxD) 96 x 22.5 x 110.5 mm
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 115 g
Protection class IP20
Power supply 12-24 VDC -15 % / +20 %, reverse polarity protected 1
Max. power consumption 10 W (incl. 900 mA total USB load) 2
Operating temperature -40 °C to +55 °C
Storage temperature -40 °C to +85 °C
Humidity (40 °C) up to 93 % (non-condensing)
Interfaces 2 x USB A (Total current consumption from both sockets max. 900 mA) 2

1 x RJ45 10/100 Ethernet

1 x Micro-USB (solely for image transfer to eMMC)

1 x Micro HDMI

2 x PiBridge system bus

Connectors 1 x 4-pole screw-type terminal for power supply
Processor Broadcom BCM2837B0 quad-core ARM Cortex-A53
Clock rate 1.2 GHz
Processor cooling Passive with heat sink
RAM 1 GB
Flash memory 8 GB (article no.: 100299) / 16 GB (article no.: 100300) / 32 GB (article no.: 100301)
Compatible modules for system expansion All RevPi IO modules and RevPi Gate modules can be connected via the PiBridge system bus
ESD protection 4 kV / 8 kV (according to EN 61131-2 and IEC 61000-6-2)
EMI tests Passed (according to EN 61131-2 and IEC 61000-6-2)
Surge / Burst tests Passed (according to EN 61131-2 and IEC 61000-6-2)
Buffer time RTC min. 24 h
Optical indicator 3 status LEDs (bi-color), two of them freely programmable
Conformity RoHS
Markings and certifications CE, UL
