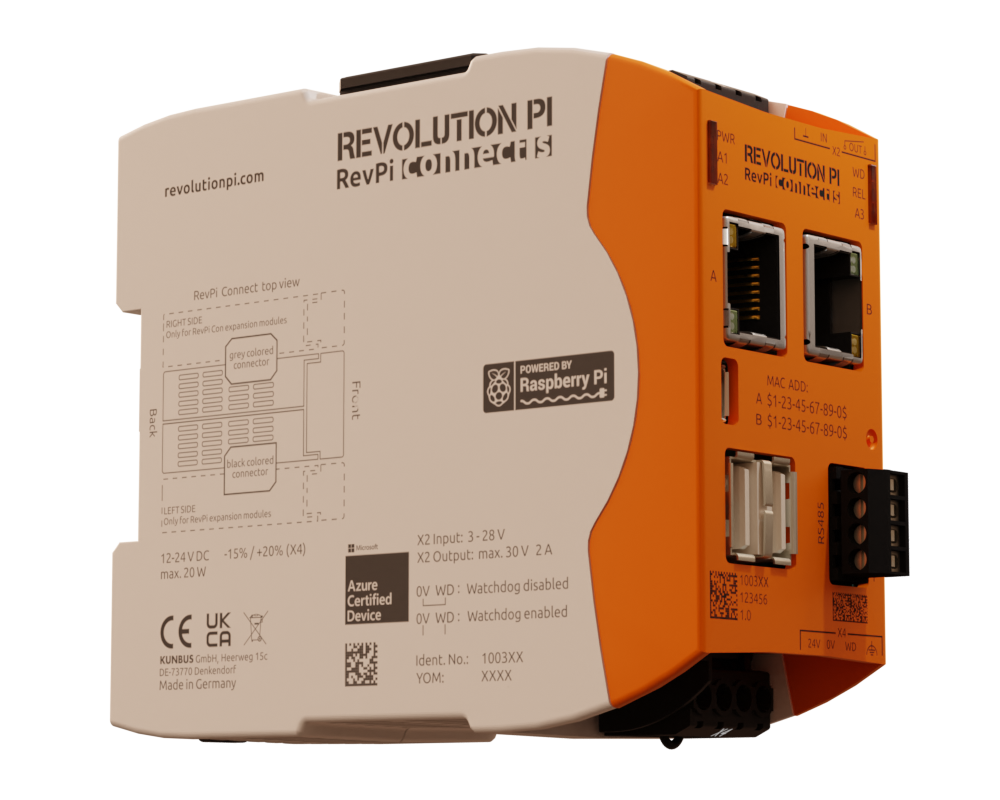

RevPi Connect S + 16GB

$913.40 ex. GST

SKU: PR100363 Category:

Description

Housing dimensions (H x W x D) 96 x 45 x 110.5 mm
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 197 g / 224 g (incl. connectors)
IP Code IP20
Power supply 12-24 V DC -15% / +20%, reverse-polarity protected
Max. power consumption 20 Watt (incl. 1 A total USB output current) 1
Operating temperature -25 °C….+55 °C
Storage temperature -40 °C….+85 °C
Humidity (at 40°C) 93% (non-condensing)
Interfaces 2 x USB A (Total current draw from both sockets max. 1 A) 2

2 x RJ45 10/100 Ethernet (using separate MAC addresses)

1 x RS485 screw-type terminal (not galvanically isolated)

1 x Micro-USB (solely for image transfer to eMMC)

1 x Micro HDMI

1 x PiBridge system bus

1 x ConBridge system bus

Connectors 1 x 4-pole screw-type terminal for relay contact and signal input

1 x 4-pole screw-type terminal for power supply

Processor Broadcom BCM2711, quad-core Arm Cortex-A72
Clock rate 1.5 GHz
Processor cooling Passive with heat sink
RAM 1 GB LPDDR4
Flash memory 8 GB (Article No.: 100302) / 16 GB (Article No.: 100303) / 32 GB (Article No.: 100304)
