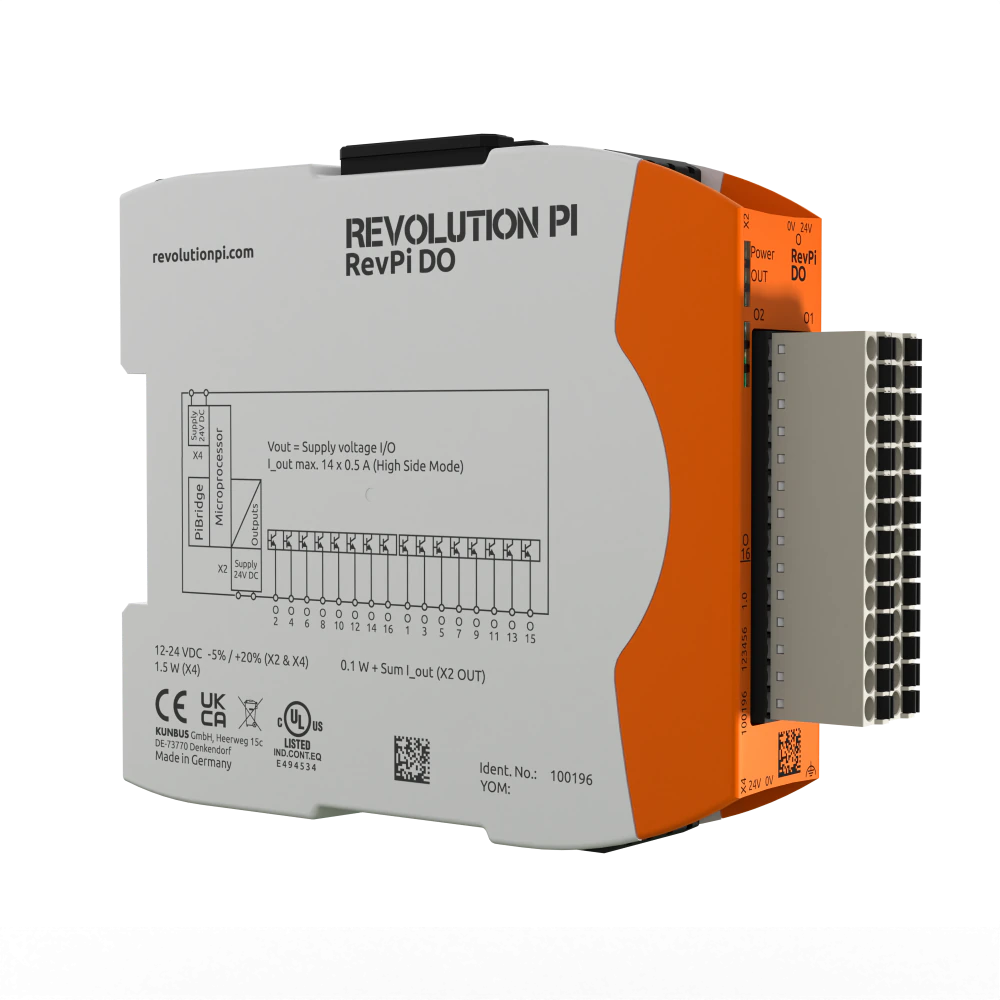

RevPi DO

$338.77 ex. GST

SKU: PR100196 Category:

Description

Housing dimensions (H x W x D) 96 x 22.5 x 110.5 mm
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 100 g / 130 g (incl. connectors)
IP Code IP20
Power supply 12-24 V DC  -15% / +20% (X2 and X4) [1]
Max. power consumption 1.5 Watt (X4/power supply)
Operating temperature -40 °C….+55 °C
Storage temperature -40 °C….+85 °C
Humidity (at 40°C) 93% (non-condensing)
Connectors 2 x 4-pole screw-type terminal for power supply
2 x 14-pin socket connectors with spring clamp contacts (0.2 – 1.5 mm²) for IOs, pitch 3.5 mm (Wieland Item No. 27.630.4453.0)
Optical indicator 3 status LEDs (bi-color)
Number of digital output channels 16
Output type Galvanically isolated from the system bus, individually configurable as direct digital output with high-side or push-pull drivers as well as a PWM output [2]
Maximum current per output 500 mA (high-side mode), 100 mA (push-pull mode)
PWM frequency Collectively selectable for all outputs: 40 Hz, 80 Hz, 160 Hz,  200 Hz, 400 Hz 2
Alarm Thermal shutdown or short circuit of outputs (individually for each output)
Dual watchdog function In the event of communication failure with the controller (after 50 ms) or internal communication with the CPU (after 9 ms, hardwarecontrolled), the outputs are reseted to zero
Output protection According to EN 61131-2 (IEC 61000-4-4, -5, -6, and -2) against short circuit, overload, external voltage, negative voltages, burst, surge, ESD, RFI
Compatible modules for system expansion All RevPi base module, expansion modules and RevPi Gate  modules (connected via overhead PiBridge connector)
Protection of the power supply inputs Reverse polarity protected, overvoltage protection
CE conformity Yes
RoHS conformity Yes
Surge/Burst tests Passed (according to EN61131-2 and IEC 61000-6-2)
